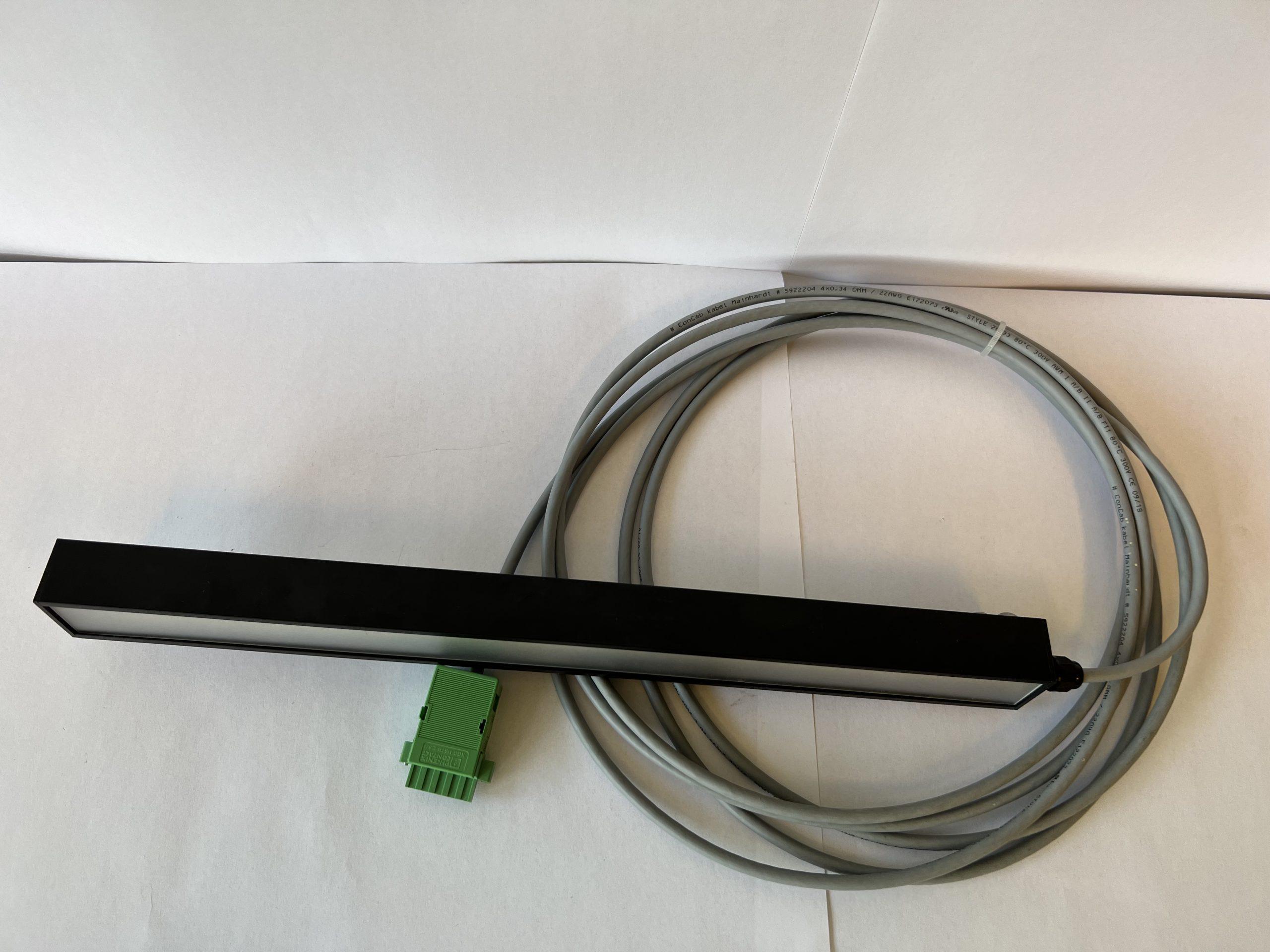

VI-LL2535_365_Top_Side

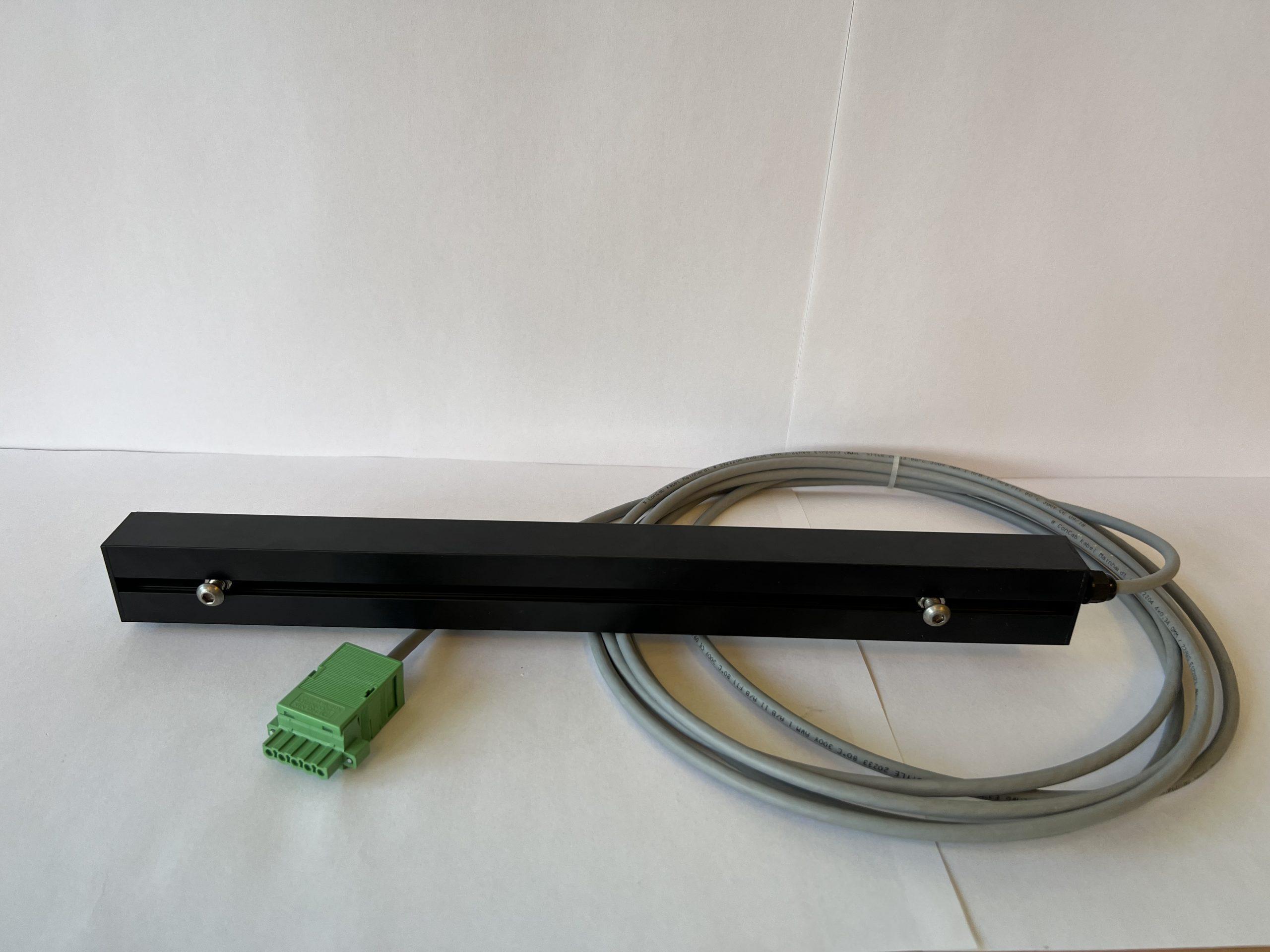

VI-LL2535_365_Back

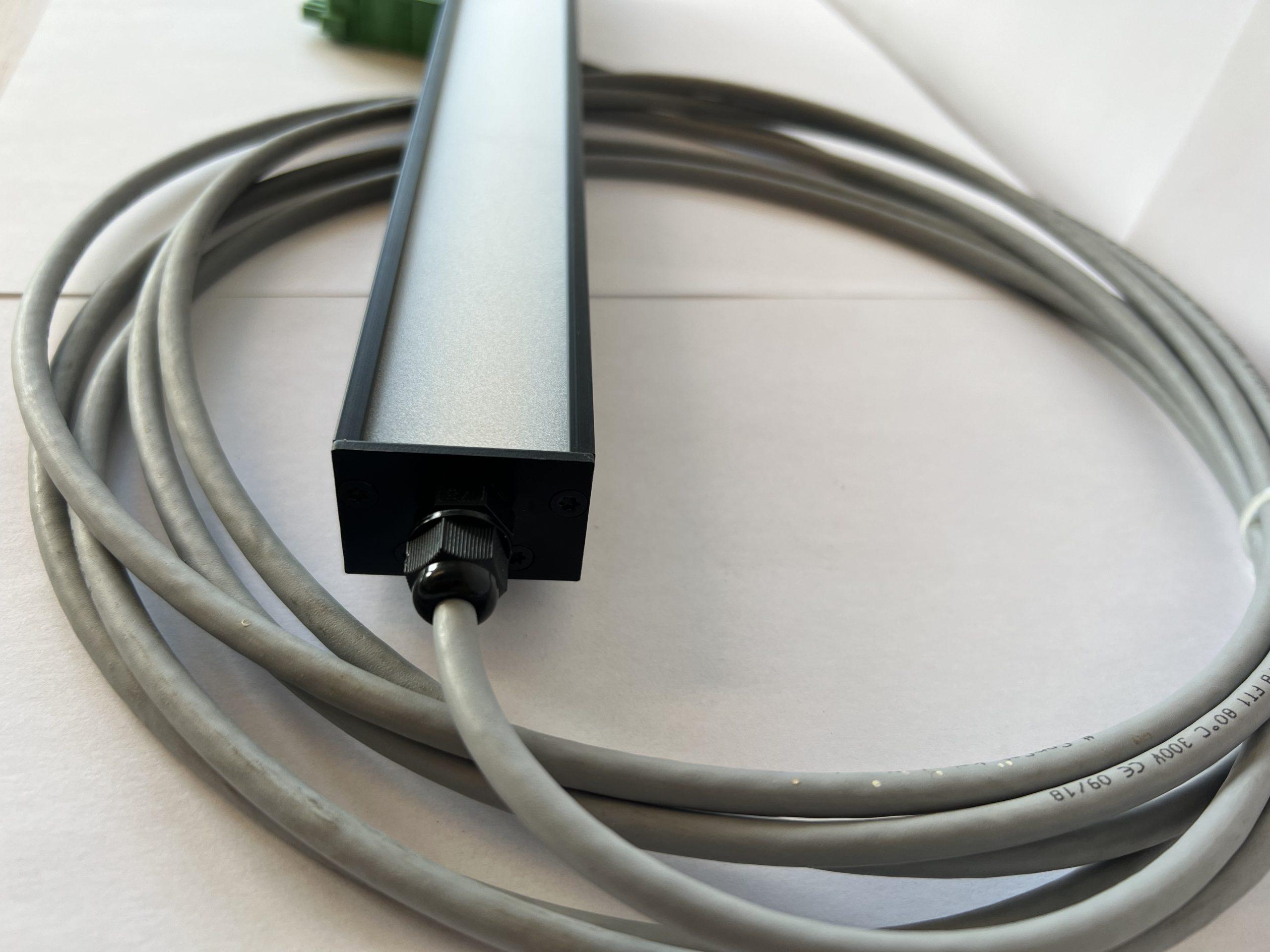

VI-LL2535_365_Cable_Gland
LampBox2535x125_mechanical
VI-LL2535_365_Box
, ,

VI-BL2535-90-XXX-WHT

500,00 € – 1.000,00 €

White
CCT 4000
CRI 90



Pricing
Quantity Discount Price
2 - 4 50,00 € 600,00 €
5 - 9 100,00 € 550,00 €
10 - 9999 150,00 € 500,00 €
SKU: VI-BL2535-90-xxx-WHT-4090-xxx-5-01 Categories: , , Tags: , ,

VI-BL2535-90-XXX-WHITE

Type number: VI-BL2535-90-XXX-WHITE-4090-XXX-5-01

High precision smart lamp, with preprogrammed specs to achieve complete lamp safety as well as lighting perfection. This lamp series comes in 15 different wavelengths and in 8 different physical lengths.

This BL2535 series is designed for machine vision applications and is avaliabel in a wide range of lengths, from 65mm up to 725mm.

For secure the best security and illumination this lamp has been equipped with a temperature sensor and a EEPROM for communicate white our controllers.



This lamp is ready for all our LumFlash controllers. See them HERE!

BL2535_PartNumberSystem
BL2535_PartNumberSystem

Documents:

Icon

VI-BL2535-Datasheet

1 file(s) 715 KB
Download

Icon

LampBox2535-Mechanical-v1.PDF

1 file(s) 261 KB
Download



Weight 1 kg
Dimensions 1040 × 200 × 120 mm
Type

VI-BL2535-90-XXX-WHITE-4090-XXX-5-01
Name

VI-BL2535-90-XXX-WHITE
EAN:

Coming soon
Supply voltage

12 – 24 V , [Recommended: 24 V]
Supply current

4,5 – 10 A , [Recommended: 10 A]
DC Current*:

(length-5)/60*1,4A
Pulsed Current*,**:

(length-5)/60*1,68A
Dimension HxW

25 x 35mm
Mounting

M5 mounting rails
Communications

1-wire
Smart

EEPROM
Temp. Sensor (Close loop control)
Open loop Control
Color

White
CCT: 4000
CRI: 90
Material

Case: Aluminum
Filter: Acryl
Stainless steel screws black finish tx10
Light type

Line Light
Bar Light
Front Light
Light distribution

, , , , ,

Cable

3m
MSTB 2,5/ 5-STF-5,08
Possible to extend with our extender cables.
3m ConCab kabel Mainhardt #5922204 4×0,34 E172073
Cable Max operating lenght

20m
Connector

Phoenix 5,08 – 5POL
Number og LED´s

(Length – 5)/ 60 x 42 LED

ex: (125-5) / 60 x 42 = 84 LED
Compatibility

LumFlash – Controller
Compliance

CE, RoHS, DS/EN 62471:2008
Photobiological Safety

DS/EN 62471:2008
IDT: EN 62471
MOD: IEC 62471 Ed. 1.0:2006
.
.
.
Exempt: 880
RG1: 480, 510, 540, LME, PCA, PCO, RNG, RED, 670, 740, WHT4090
RG2: 395, 455, MNT, WHT5090, WHT5790, WHT6590
RG3:
IP rating

IP50
Length

65 mm, 125 mm, 185 mm, 245 mm, 305 mm, 365 mm, 545 mm, 725 mm
